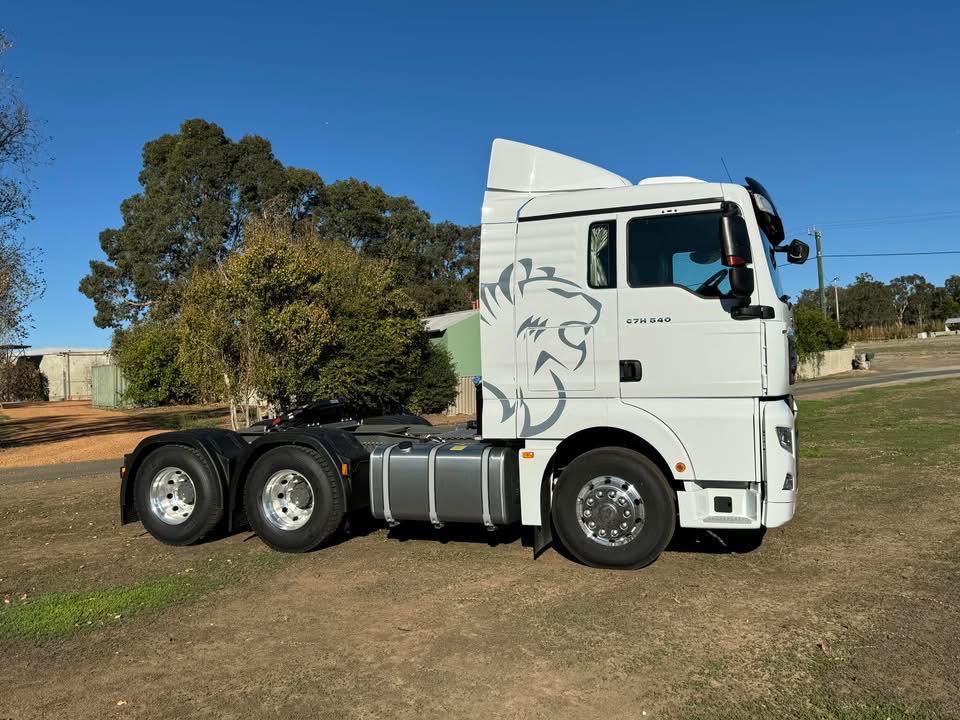

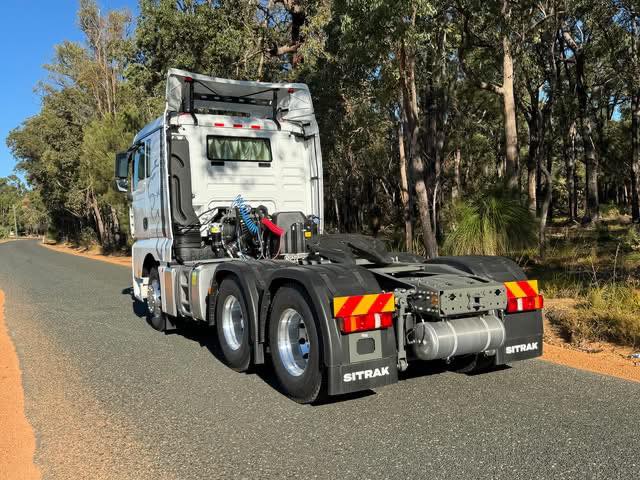

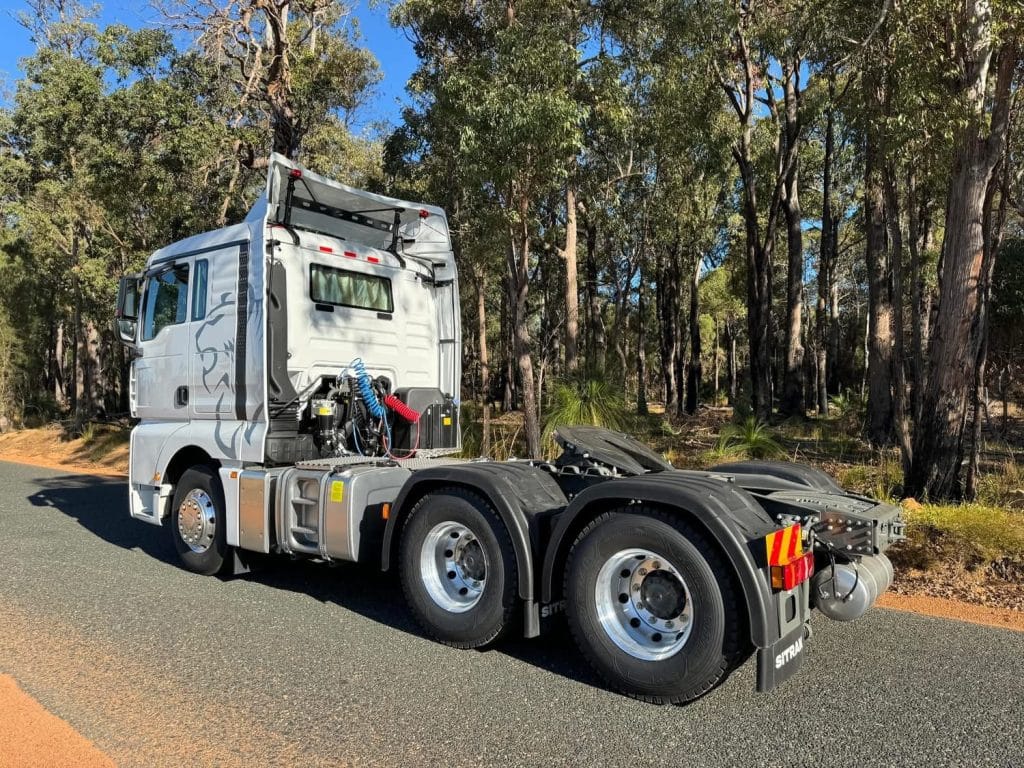

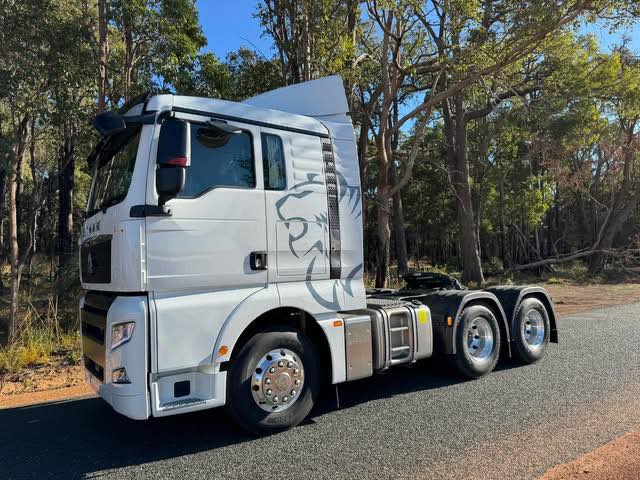

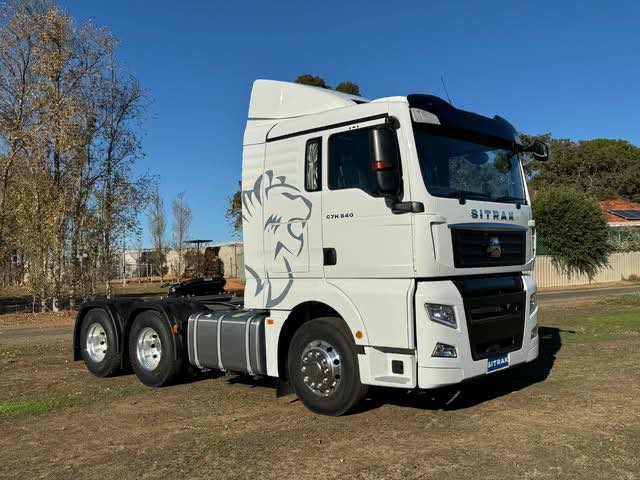

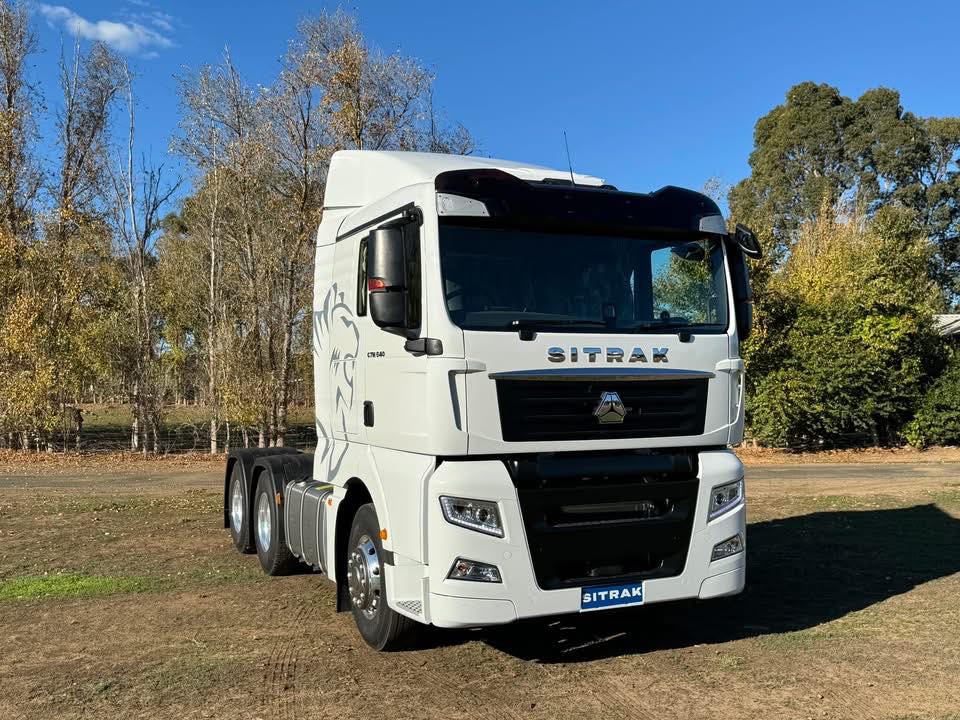

Sitrak Model C7H-P 6x4 Auto Prime Mover

Sitrak Model C7H-P 6×4 Auto Prime Mover

The “NEW” Sitrak Model C7H is a Premium Class vehicle with the latest technology to reduce service costs, increase fuel economy and increase driver safety with a Steel ECE R29 crash roadworthy cabin.

Truck Information

Engine

MC13.54, 12.419L, 6-cylinder 4-valve in-line engine, Bosch High pressure common rail diesel engine, water cooled, 4 stroke w/- intercooler.
540hp (397kW) @ 1900rpm, 2,500Nm (1,843 ft/lb) @ 1050-1350rpm.
Euro 5 emissions rating with NOx control.
SCR catalytic converter with AdBlue injection.
Engine valve brake, Exhaust brake

Transmission

12 Speed AMT ZF Automatic Transmission.
Wabco control system
Voith Retarder 6 stage
Forward gear ratios: 11.8, 9.17, 7.10,5.61, 4.38, 3.44, 2.70. 2.10, 1.62, 1.28, 1.0, .79
Reverse Gears: 10.85, 2.48.
Clutch: CH430 diaphragm model w/- Hydraulic operating with air assistance.
“M” (Manoeuvring mode) low speed manoeuvring in forward and reverse.

Air intake/exhaust

Mann + Hummel air filter system mounted LHS of the cabin with housing mounted under cabin.
Exhaust in down swept passenger side.

Batteries

24V CAN bus system.
2 x 12V/180amp.
Battery Isolation switch at battery box.
12 Volt outlet in dash, USB outlet in dash.
SD card slot in dash.
Battery Box with cover – Frame mounted LHS
Central locking with Remote.

Axles & equipment

Front Axle: HF7 – 7 Tonne rated with parabolic 3 leaf & disc brakes.
Steering system is ZF steering gear and oil pump.
Front mudguards with water suppression as standard.
Rear Axles: 2 x MCY13, 18 tonne rated Hypoid axles.
Differential lock and cross lock on both axles.
Ratio: 3.70:1
Disc brakes and 8 Bag – air suspension.
Factory fitted rear mudguards with spray suppression as standard.

Brake system & equipment

WABCO (4) channel (4) Modulator (4) sensor, dual circuit ABS, with front and rear ventilated disc brakes.
Exhaust vehicle assist engine brake system.
Traction control, stability control

Frame

Cross-Section dimensions – 270mm x 85mm x 8mm
Width of frame: 940mm Front and 762mm Rear.
Length: 6945mm, Width: 2490mm, Height: 3594 (XLX High Roof)
Front overhang: 1475mm, Rear overhang: 750mm
Steel front Under-run Protection Device (FUPD) for ADR84/00 compliance.
Wheelbase: 3900mm

Fuel tanks & equipment

Aluminium tank with lockable cap.
Standard combination:
600L Diesel Drivers side, 370L Passenger side & 90L AdBlue Drivers side.

Wheels/Tyres

Aluminium rims:
8.25×22.5, 10 stud 335mm PCD Tyres.
Tyres:
Front: (2) Goodyear – 295/80R 22.5 Highway Pattern.
Rear: (8) Goodyear – 11R 22.5 X-Rib Drive Tyres.

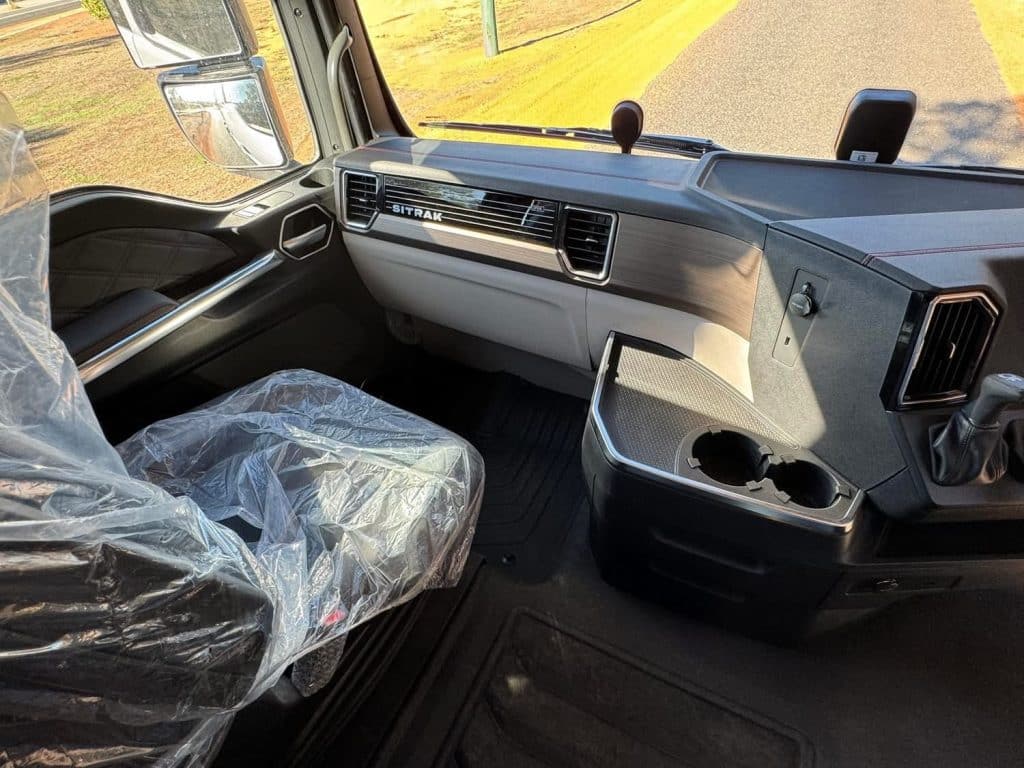

Cab

Sinotruk Safety Cab – Exceeds ECE-R29 Crashworthy Standards.
Four-point cab full floating suspension.
65-degree cabin tilt angle, for easy access servicing.
External storage compartment on driver and passenger side.
Flat glass main power electric rear view mirrors 6” x 16” with HD mountings for both doors. (Alloy Bull bar extra cost)
LH/RH Convex mirrors under primary mirrors
Close up mirror on passenger side.
90 degree opening, internally reinforced doors.
No-Slip entry steps12/24V Trailer Supply and Suzi coils
Exterior fibreglass sun visor.

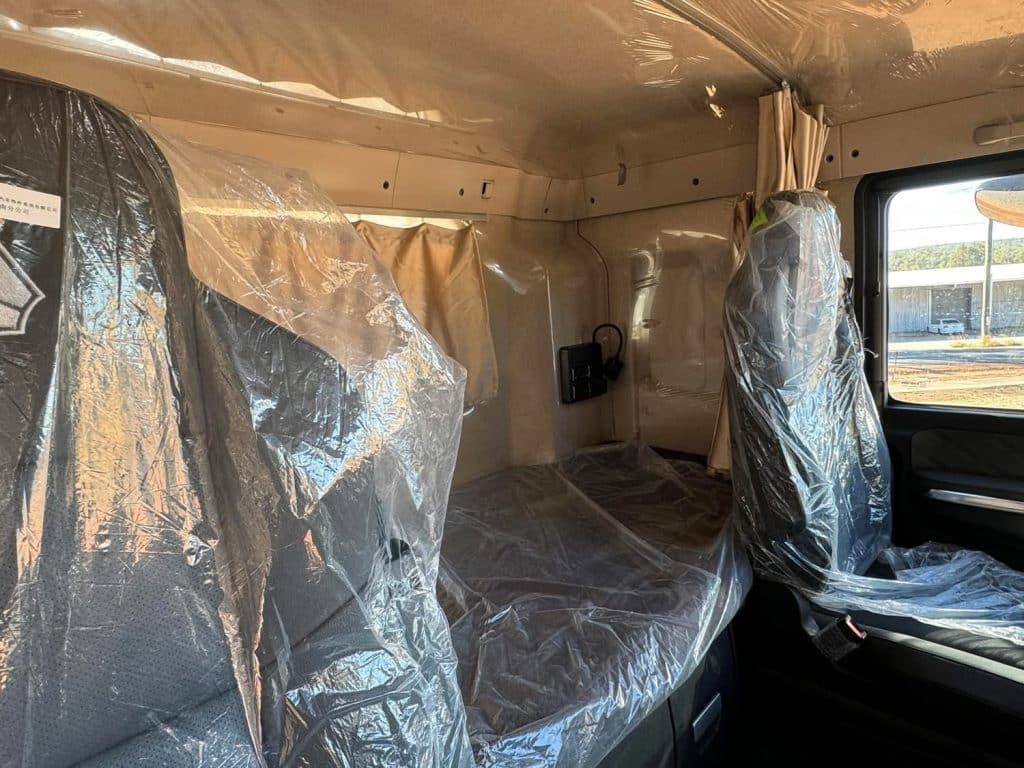

Bunk mattress’ featuring safety rail (bottom) and harness.
Main Bunk: 790mm wide x 2,200mm long

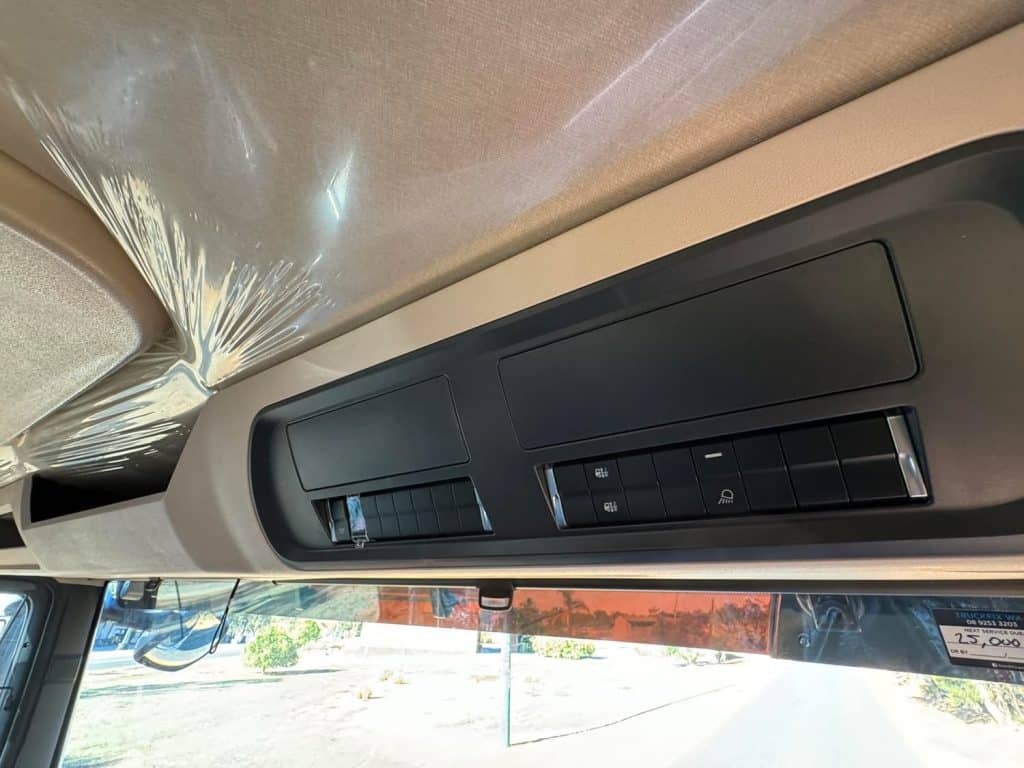

Three separate storage compartments above console

Cab cont’d

Manually operated sunroof.
Floor mat with double insulation
Heater, vent A/C ducting with fresh air filter.
Automatic climate control with air conditioning.
Pneumatically controlled infinite tilt and telescopic adjustable steering column.
Retractable seat belt with pre-tensioner.

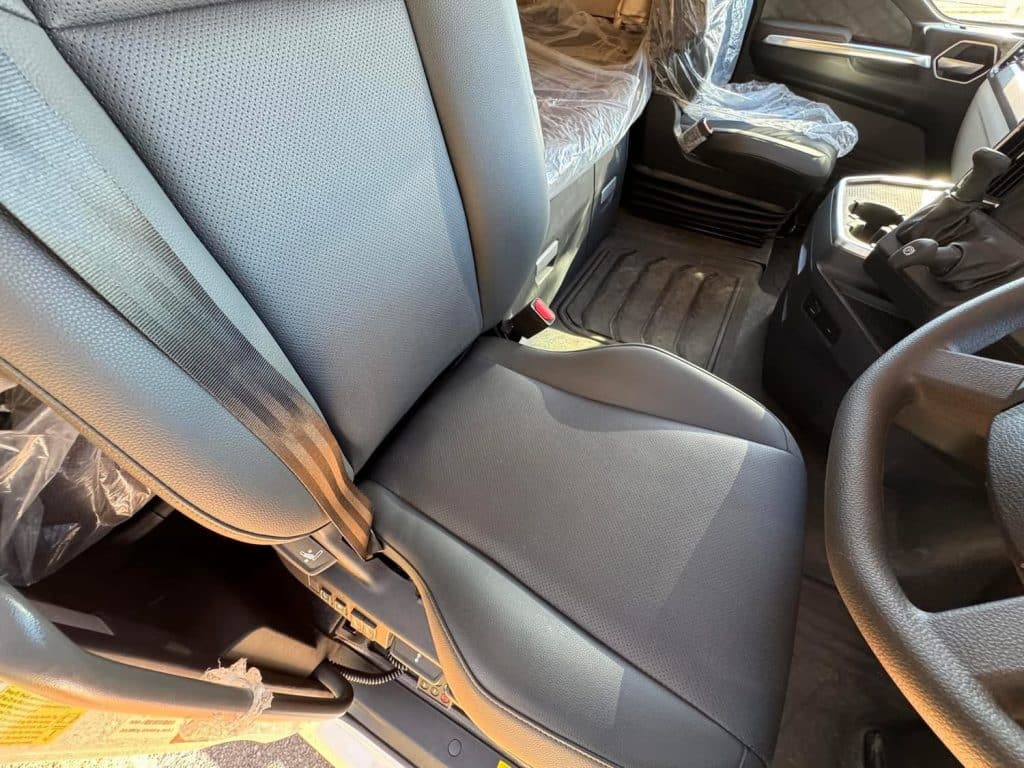

ISIRI Leather Driver seat with heating and cooling.

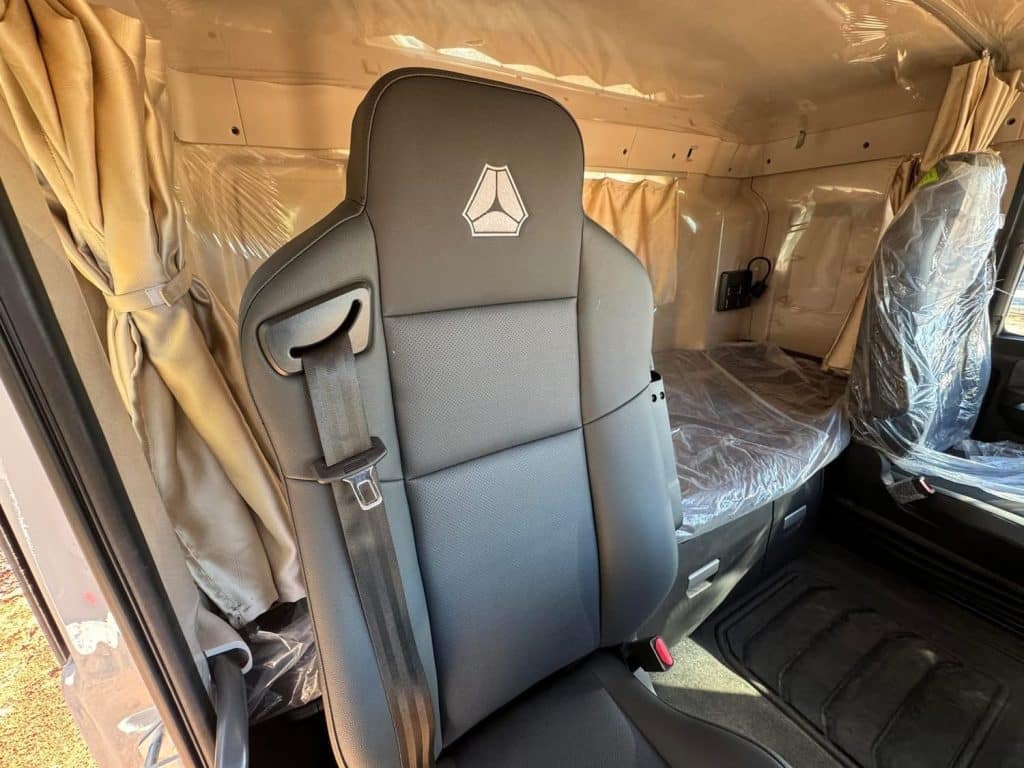

ISRI Leather Passenger.

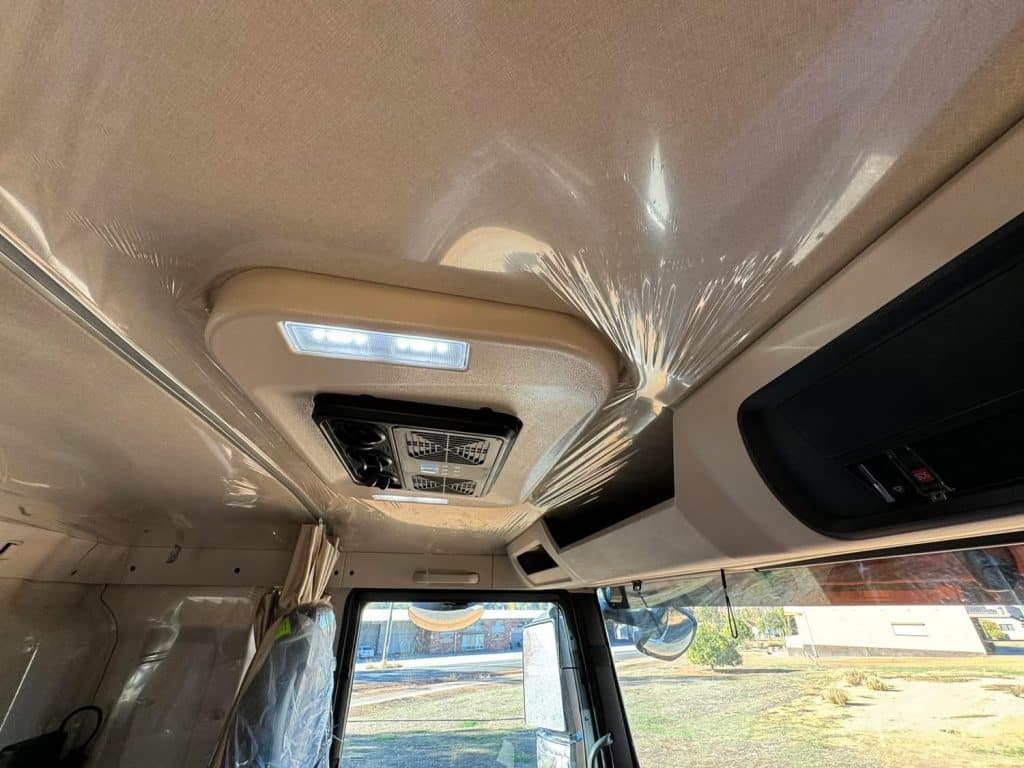

Refrigerated cab cooler
30L draw fridge mounted under bunk

Lighting

Sensor LED Projector style driving lights, with 3 position height adjustment.
Lower spotlights.
Daytime running lights
Rear facing spotlight for turntable.
Side LED marker lights
Door activated LH/RH overhead dome and map lights.

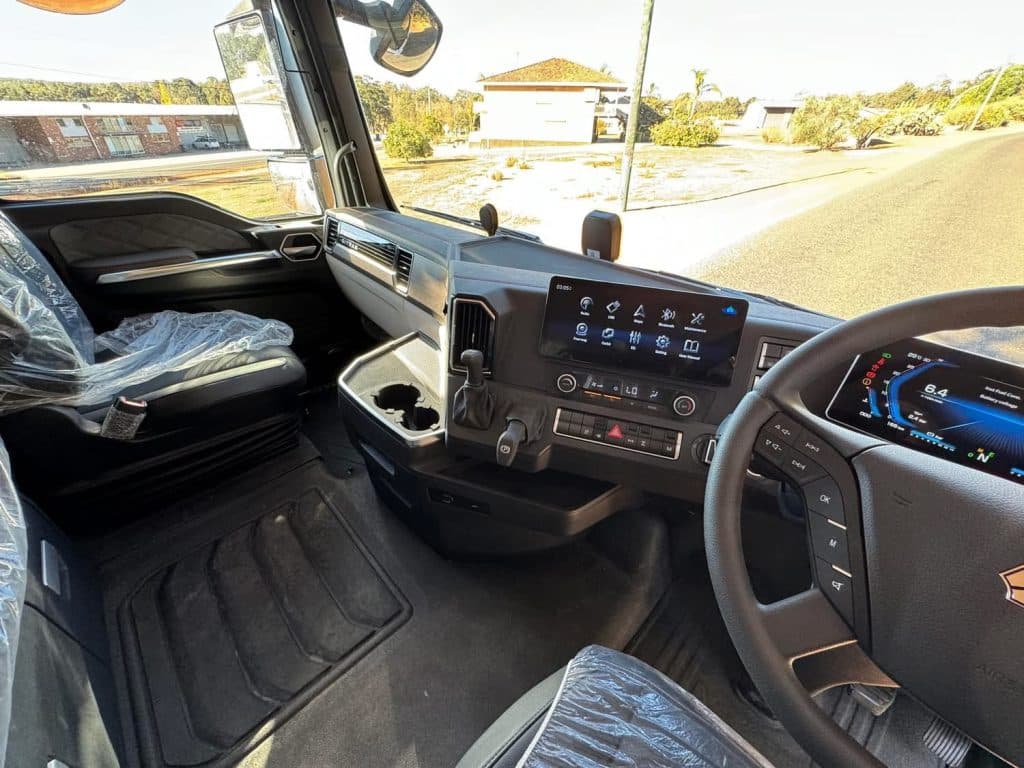

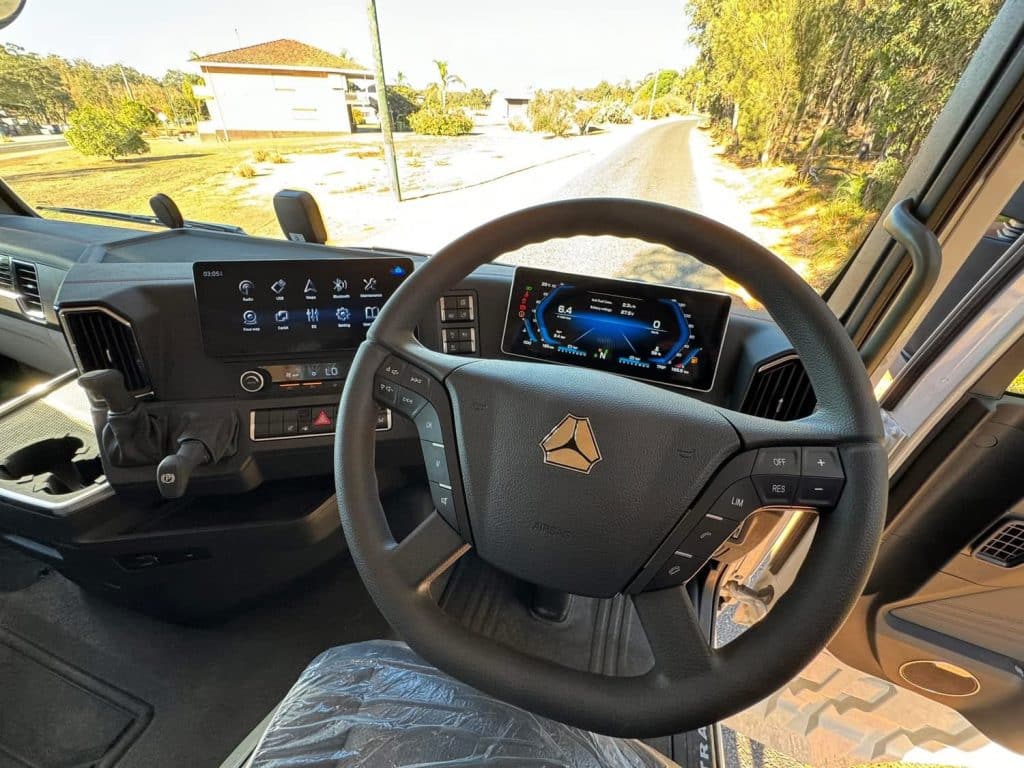

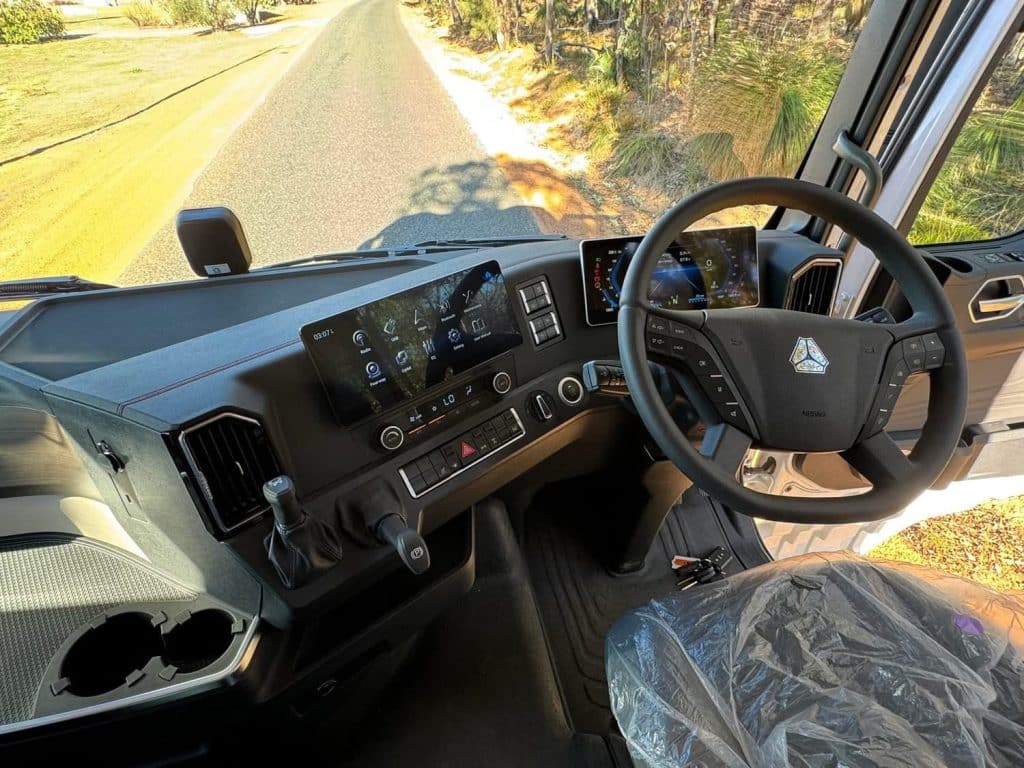

Instrument panel & controls

Electronic dash display.
Driver message centre & warning lights.
Speedometer – kph, tachometer, odometer
Coolant temperature, fuel gauge, gear selection
Primary & Secondary air system pressure gauges – metric
Low air pressure warning light and buzzer
Diagnostic interface connector.
Control switches in auxiliary control panel.
Trailer brake and park brake hand controls.
7” touch screen with Bluetooth
360-degree view camera

Weights

GVM : 25,000kg
GCM : 90,000kg
